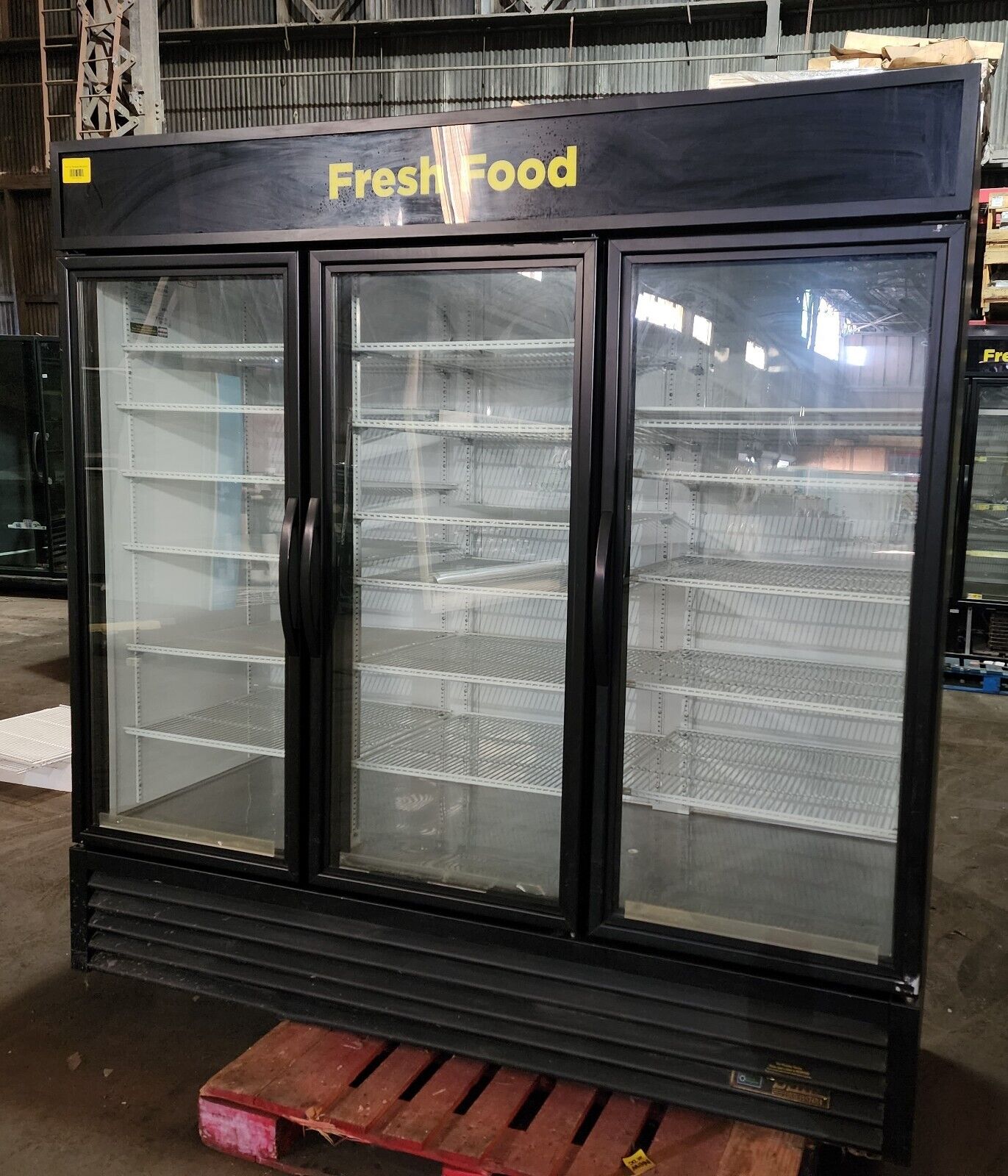

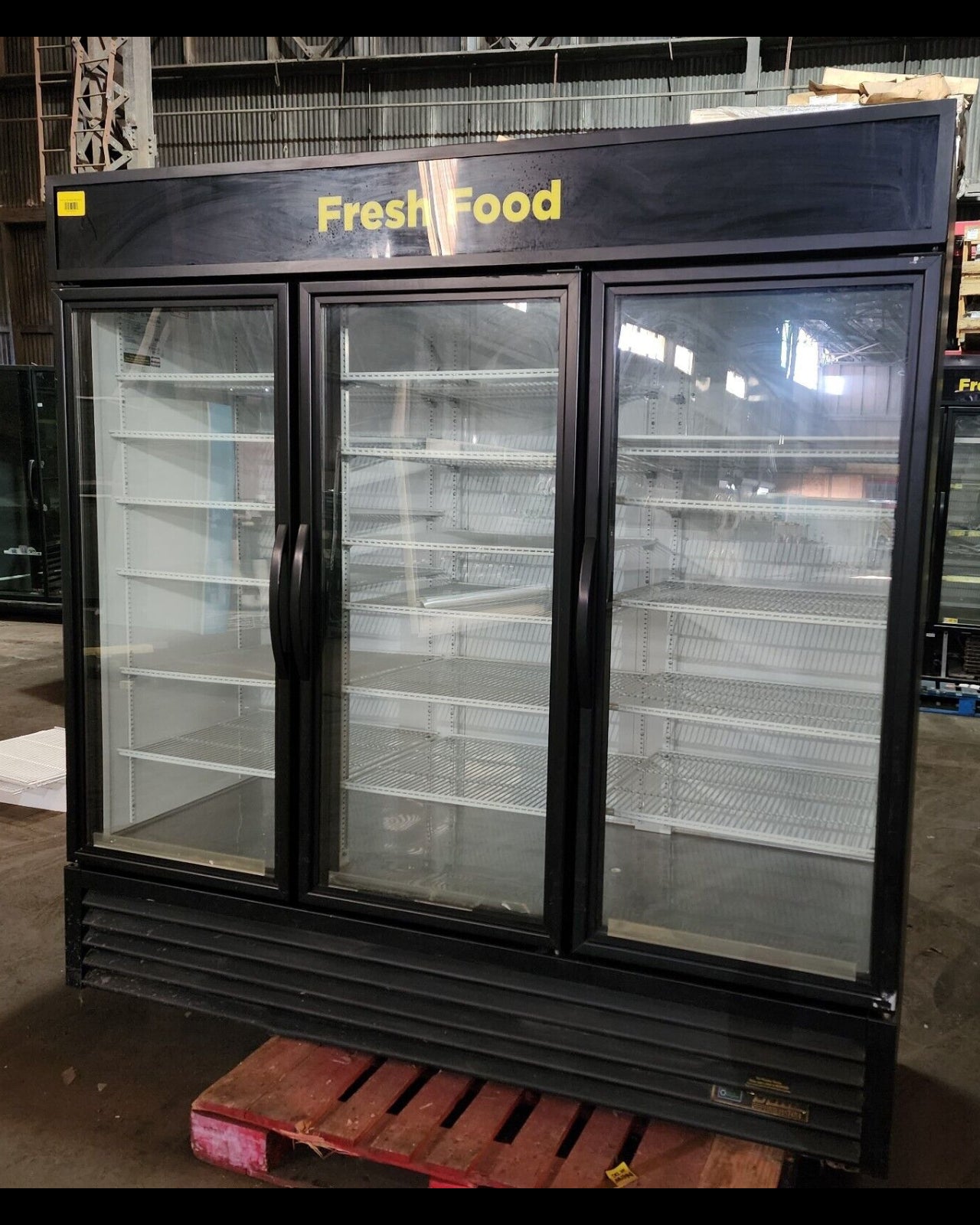

True 78" three section glass door merchandiser GDM-72-HC~TSL01

True 78" three section glass door merchandiser GDM-72-HC~TSL01

Regular price $2,800.00 USD
Regular price Sale price $2,800.00 USD
Sale Sold out

True Refrigeration GDM-72-HC~TSL01 Description

The True GDM-72-HC~TSL01 three-section glass door merchandiser has 12 shelves that display packaged products in an organized way. Interior LED lights illuminate the cabinet and provide product visibility, while the no-stoop lower shelf raises product to a higher level for comfortable reaching. Each section is fitted with a double-pane glass door and a 12-inch extruded handle to open each door. A magnetic door gasket prevents cold air from escaping the cabinet and can be removed without tools.

Foamed-in-place polyurethane insulation keeps cold air inside the cabinet while also giving it structure. A self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant, and the refrigeration system helps maintain a temperature range of 33 to 38 degrees Fahrenheit. The True GDM-72-HC~TSL01 three-section glass door merchandiser has a permanent, durable white powder-coated exterior and white aluminum interior liner that can withstand heavy duty use.

Expanding the unit's lifespan, the reverse condensing fan motor and routine maintenance can be used to keep the condensing coil clean. This feature is automatic, blowing in reverse for 20 seconds after the compressor is started. It helps to remove dust, dirt, and debris, reducing energy consumption and maintaining proper product temperatures.

Product Details

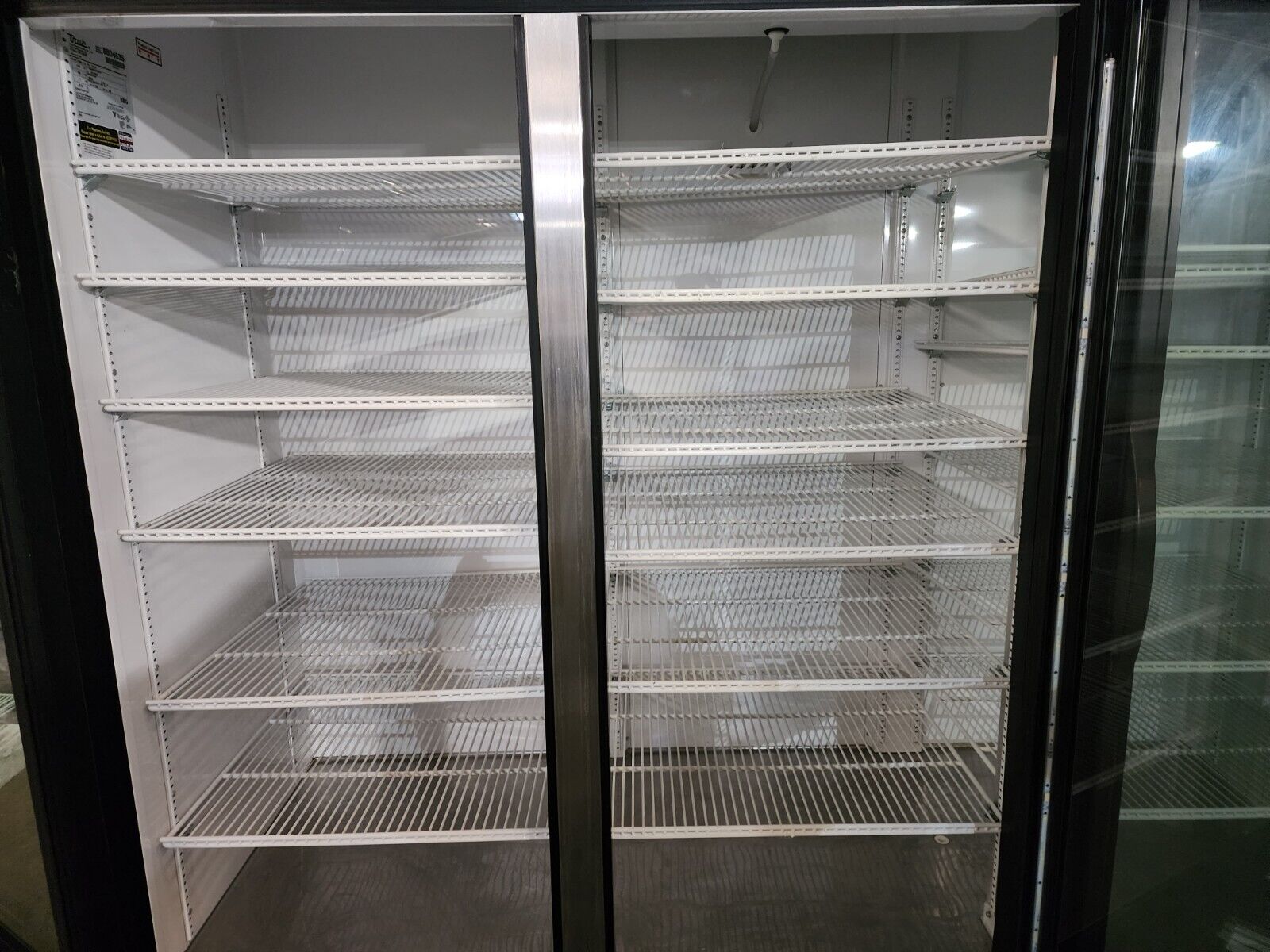

  • 12 PVC-coated wire shelves adjust to accommodate products with varying heights
  • 4 chrome-plated shelf clips per shelf
  • No-stoop lower shelf increases visibility of products by raising them to a higher level
  • 3 double-pane, thermal-insulated glass swing doors each have a 12-in. extruded handle
  • Self-closing doors keep cold air in and have black, powder-coated frames for durability
  • Magnetic door gaskets keep cold air from escaping in heavy use applications
  • Gaskets are removable without tools
  • LED interior lighting ensures visible product

Refrigeration System

  • Self-contained capillary tube system uses R290 hydrocarbon refrigerant
  • Temperature range: 33-38 degrees F
  • Evaporator and condenser fan motor move a consistent volume of air, producing less heat and reducing energy consumption
  • Fan motor blows in reverse for 20 seconds upon compressor start up to blow dust off the condensing coil
  • Condensing unit is mounted on the bottom for maintenance
  • Epoxy-coated evaporator resists corrosion

Heavy-duty Construction

  • White, powder-coated exterior is durable and permanent
  • Stainless steel floor and white aluminum interior liner are durable
  • Foamed-in-place, polyurethane insulation keeps cold air inside and gives the entire cabinet structure
  • Black powder-coated steel frame rail is heavy duty to resist corrosion
  • Leg levelers keep the cabinet sturdy on uneven flooring
  • Clean-out drain is built into the floor for cleaning

Dimensions & Utilities

  • Shelves: 2418 in. W x 2034 in. D
  • Overall: 7818 in. W x 3114 in. D x 7858 in. H
  • 9.3 A, 12 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

From The Manufacturer

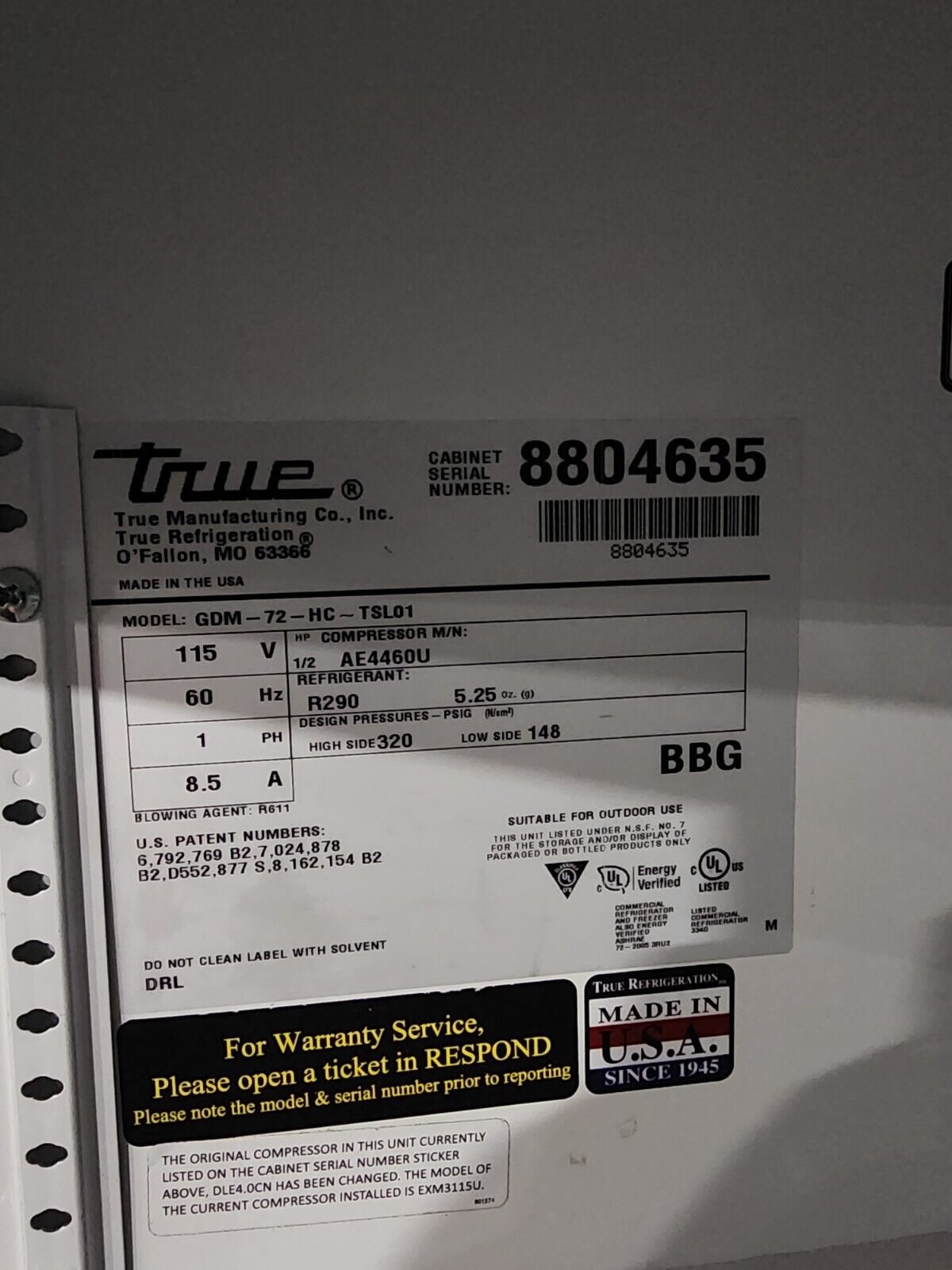

Refrigerated Merchandiser, three-section, True standard look version 01, (12) shelves, (3) double pane thermal insulated glass hinged doors, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 9.3 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®
