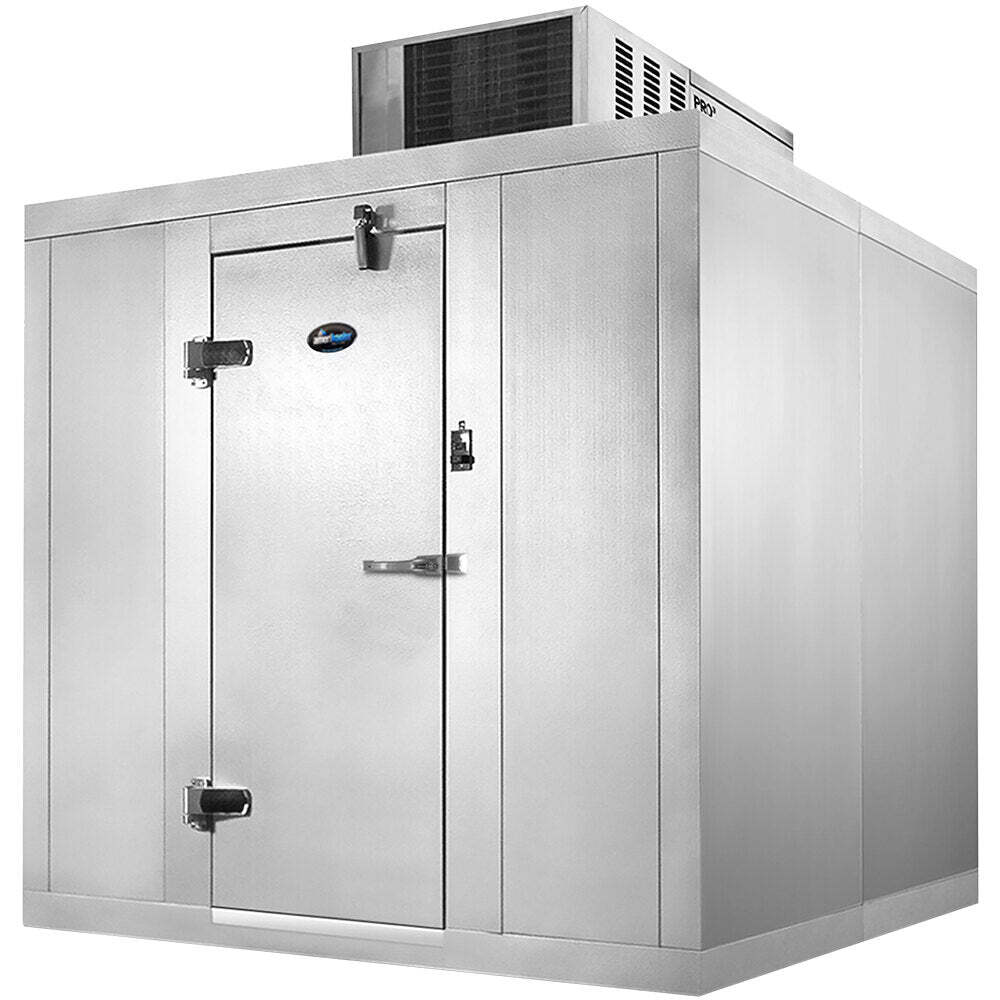

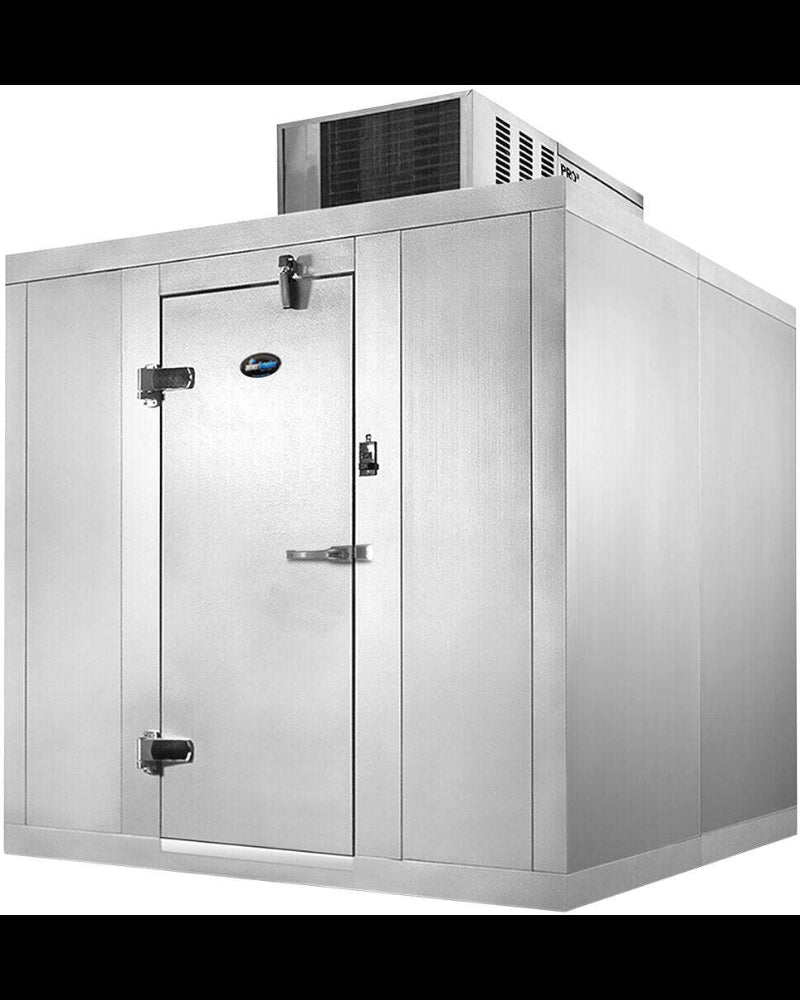

NEW Amerikooler - 6' x 10' x 8' freezer w/ floor & w/ self contained Bohn unit

Indoor walk‐in freezer w/ floor

**STOCK PHOTO USED**

Interior Dim: 5'‐2 5/8" x 9'-1 1/4" x 6'‐11" (w x l x h)

• Temperature: ‐10°F
• Insulation: 4" thick AK‐XPS4 extruded foam with R‐values of R‐29 for coolers and R‐32 for freezers with a 50 Year Thermal Warranty. UL Classified Core Flame Spread 15, Smoke Rating less than 165.
• Warranty: 15 Year Panel Warranty and 1 Year Parts Warranty

Finishes

• Interior walls: 26 Ga. Stucco Embossed Acrylume
• Exterior walls: 26 Ga. Stucco Embossed Acrylume
• Interior ceiling: 26 Ga. Stucco Embossed Acrylume
• Exterior ceiling: 26 Ga. Stucco Embossed Acrylume

• Floor Type: Type 1B
• Application: Foot Traffic ‐ No Rolling Carts NSF Floor panel rated for 700 LBS/ SQ. FT. | 22 Ga. Stainless Steel Integral ‐ Not Reinforced
• Door: (1) Standard 36" x 76" Left hinged flush door with brushed hardware.
• Interior & Exterior finish: 26 Ga. Stucco Embossed Acrylume.
• Energy saving temperature regulating thermostat heater wire and heated relief vent.
• Heavy duty deadbolt handle latch.
• Digital LED Thermometer with pilot light switch. 1807 11w, Vapor Proof, 120V. LED fixture. 82 Lumens /watt Angled face . Requires 115vac. 2.2 amps.
• Hinges: (2) Super cam‐rise spring assisted hinges
• Accessories: (1) extended 4 year compressor warranty

Freezer drop-in: Bohn Pro3 ‐ DOE Compliant indoor top mount self‐contained

• Model: PT0062LBNEMSA,
• 208‐230/1/60, MCA 19.8 Amps, Low Temperature, R‐448A, 2 years compressor and parts warranty from date of shipment within continental USA.
