Used unit. If you have any questions please ask and be sure to check out our other items!
HCS — (S for Short) Insulated fan section with motor FC - Forward curved fans, available base and access door(s), horizontally adjacent (same with all cabinet styles, sizes 3 thru 41 elevation) with insulated short depth coil section with drain pan.
Basic Cabinet
- Fan section and a coil section with double wall drain pan.
- Galvanized steel with 1" - 3/4 pound density mat faced fiberglass insulation.
- All fan sections have hinged and latched access doors.

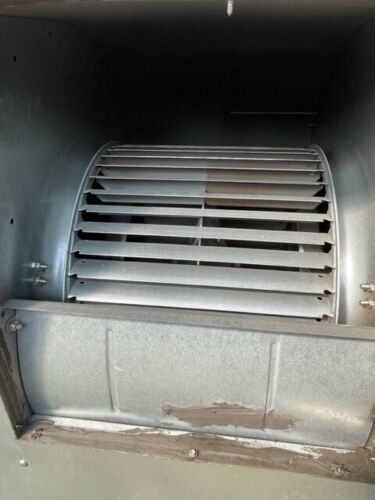

Fan Section
- Motors mount inside of cabinet.
- All units have a single fan design (either forward curved or airfoil)
- Single, double width, double inlet fan wheels for quiet performance and low energy consumption
- Fans are statically and dynamically balanced in fan section before the unit leaves the factory
- Fan bearings are ball bearing type selected for 200,000 hour average life.
Coil Section
- A wide variety of coil types to meet the load requirements of conditioned spaces including water, direct expansion, heat reclaim and steam coils.
Accessories
- Electric Heaters and remote control panels

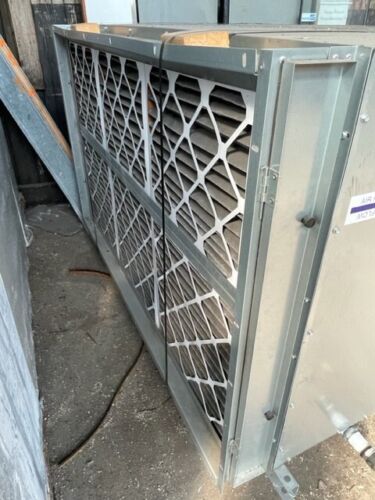

- A wide variety of filter sections: flat, high capacity, and high efficiency
- Economizer sections
- Internal or external face and bypass damper section

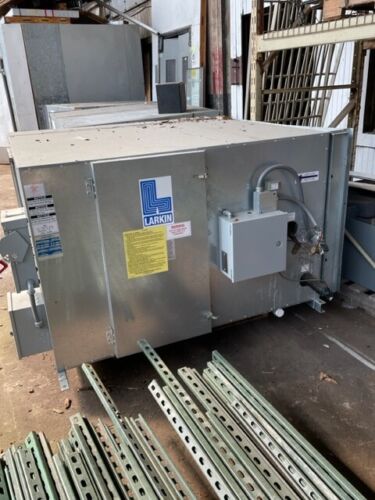

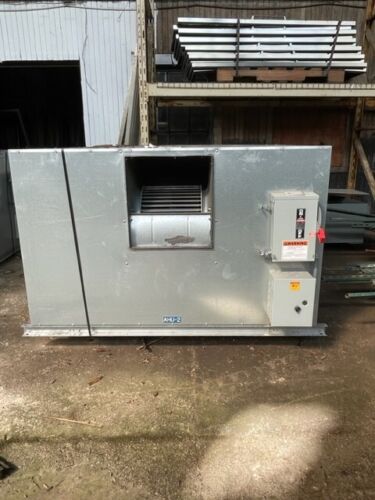

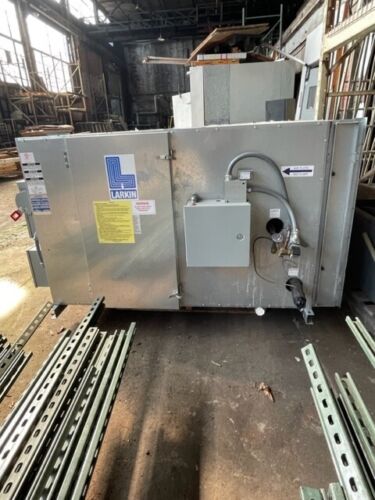

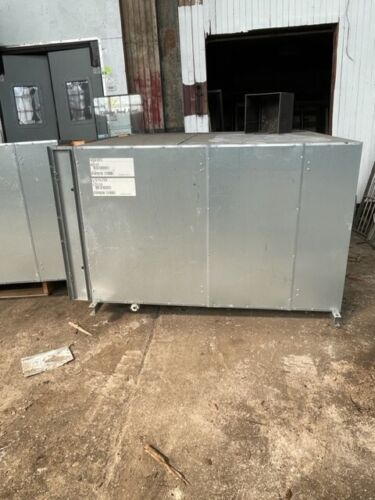

PLEASE REFER TO THE PHOTOS FOR THE GENERAL CONDITION OF THE UNIT. IF YOU NEED ADDITIONAL PICTURES, PLEASE ASK AND WE CAN GET THEM. THIS UNIT WAS REMOVED IN WORKING CONDITION BUT HAS NOT BEEN RUN SINCE.
SOLD AS IS. NO RETURNS!
